12th Gen Intel Core I3 I5 I7 Mini PC

Model: Partaker N7

High-performance Mini PC with Intel Core processors.
DDR5 memory for faster data processing.
Multiple expansion slots for various connectivity options.
Complete I/O ports for seamless connectivity.
CE, CCC, FCC, and ROHS certified for reliability.
Ideal for industrial automation and robotics.
Robust for edge computing and machine vision.
Includes TPM2.0 encryption for security.
Compact design for space-limited environments.
Easy to configure and deploy for industrial use.

Share to:

Overview

This Mini PC features powerful Intel Core processors ranging from i3 to i7, equipped with DDR5 memory for optimal performance. It boasts multiple expansion slots, including M.2 slots for NVME, USB3.0 signal, and WIFI/BT. With its comprehensive I/O ports, network capabilities, and security encryption, this PC is ideal for industrial control, automation, robotics, IoT gateway, edge computing, and machine vision applications. Certified with CE, CCC, FCC Class A, and ROHS, it offers reliable and secure operation for a wide range of industrial uses.

Mechanical

Material	High-quality all aluminum
Colour	Metallic Black (color can be customized)

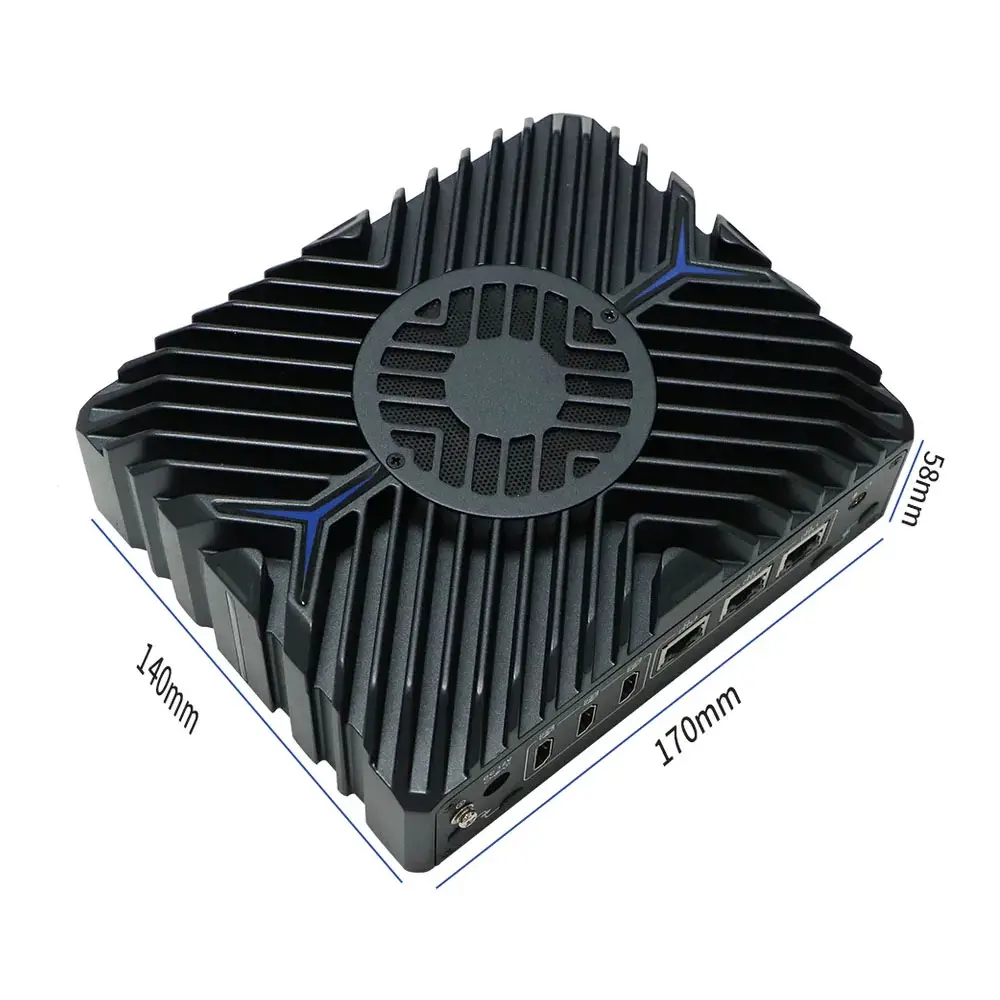

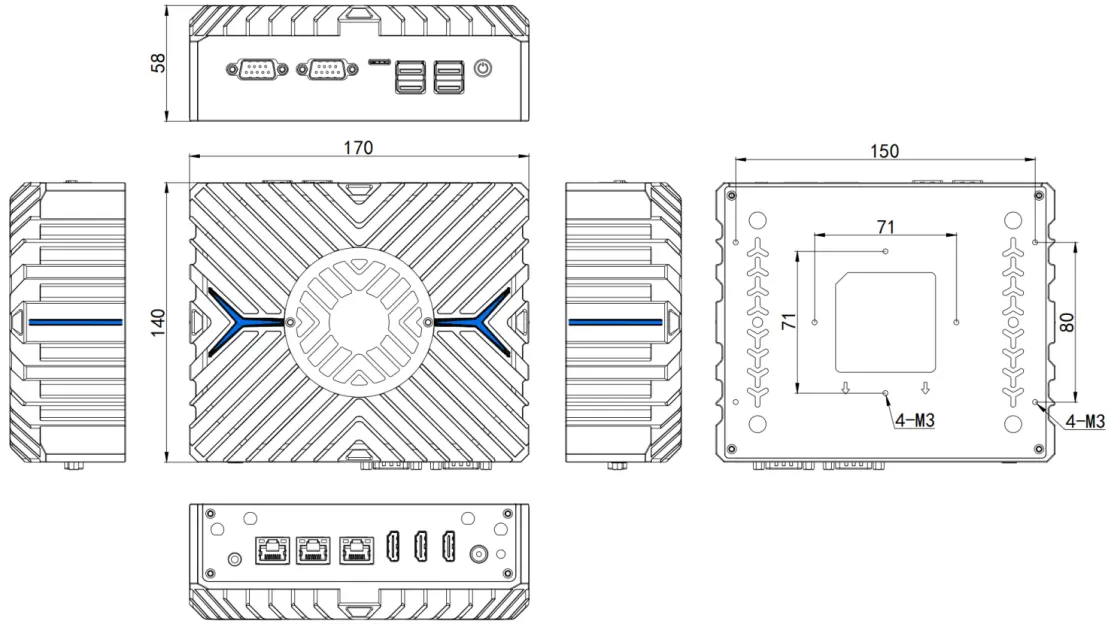

Size	170 * 140 * 58 mm
Weight	1.5Kgs
Insallation Method	With VESA, Wall-mounted, embedded, desktop, Din Rail

Motherboard

CPU	Intel Core i3 1215U (Six core Eight threads, Turbo. 4.4 GHz) Intel Core i5 1235U (Ten core Twelve threads, Turbo. 4.4 GHz) Intel Core i7 1255U (Ten core Twelve threads, Turbo. 4.7 GHz)
Display Ports	3 x HDMI with 4K, Support Synchronous or asynchronous display, Max. 4096×2160@Hz
Network Card	2 x Intel i225-V 2.5G Lan
Memory	1 x DDR5 4800 SODIMM memory slot，Max. 32 GB
Storage	Support 1 x M.2 2280 slot, 1 x 2.5inch SSD/HDD
Expansion	Support 1 x M.2 2280 M-Key slot（NVME） Support 1 x M.2 3052 B-key slot(USB3.0 signal, support 4G/5G), External SIM card slot Support 1 x M.2 2230 E-key slot(support WIFI,BT)
Other Function	Auto power on when there is electricity, Timing boot, Wake On LAN, PXE boot, Watchdog (0～255 Level), TPM2.0 security encryption

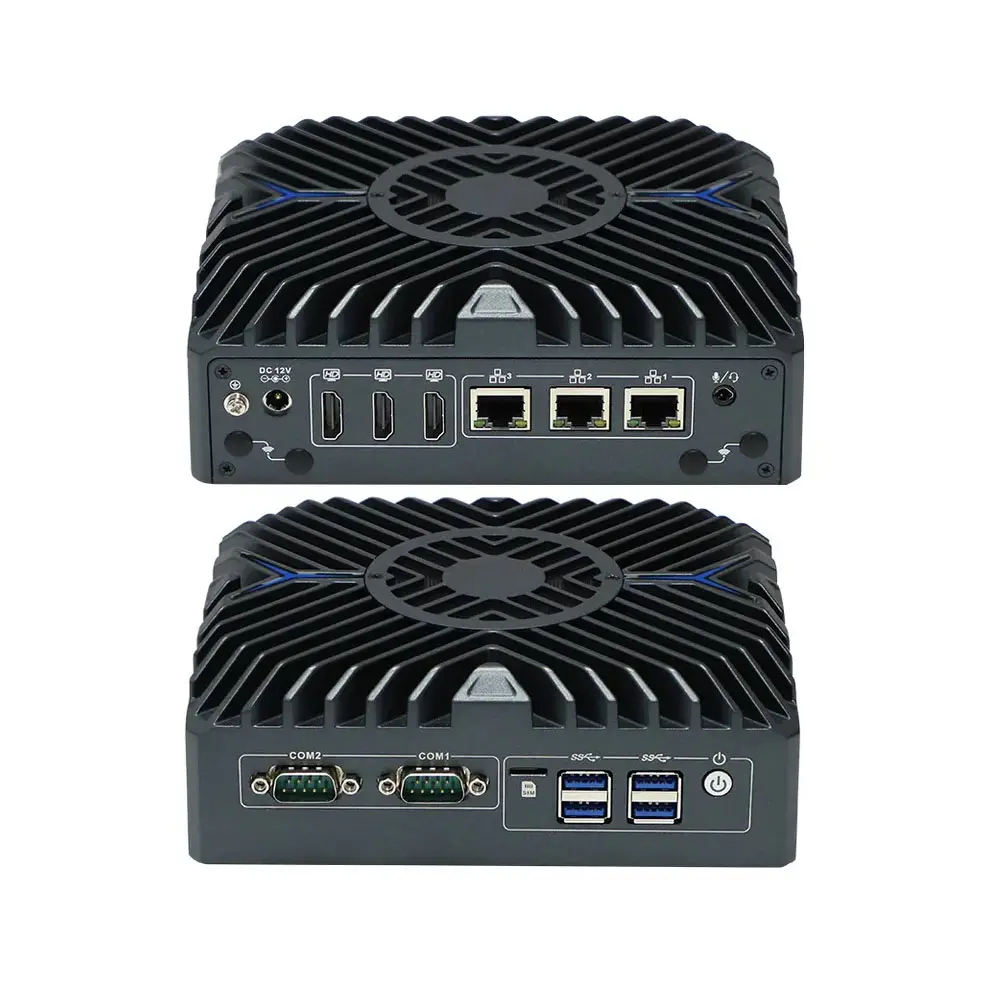

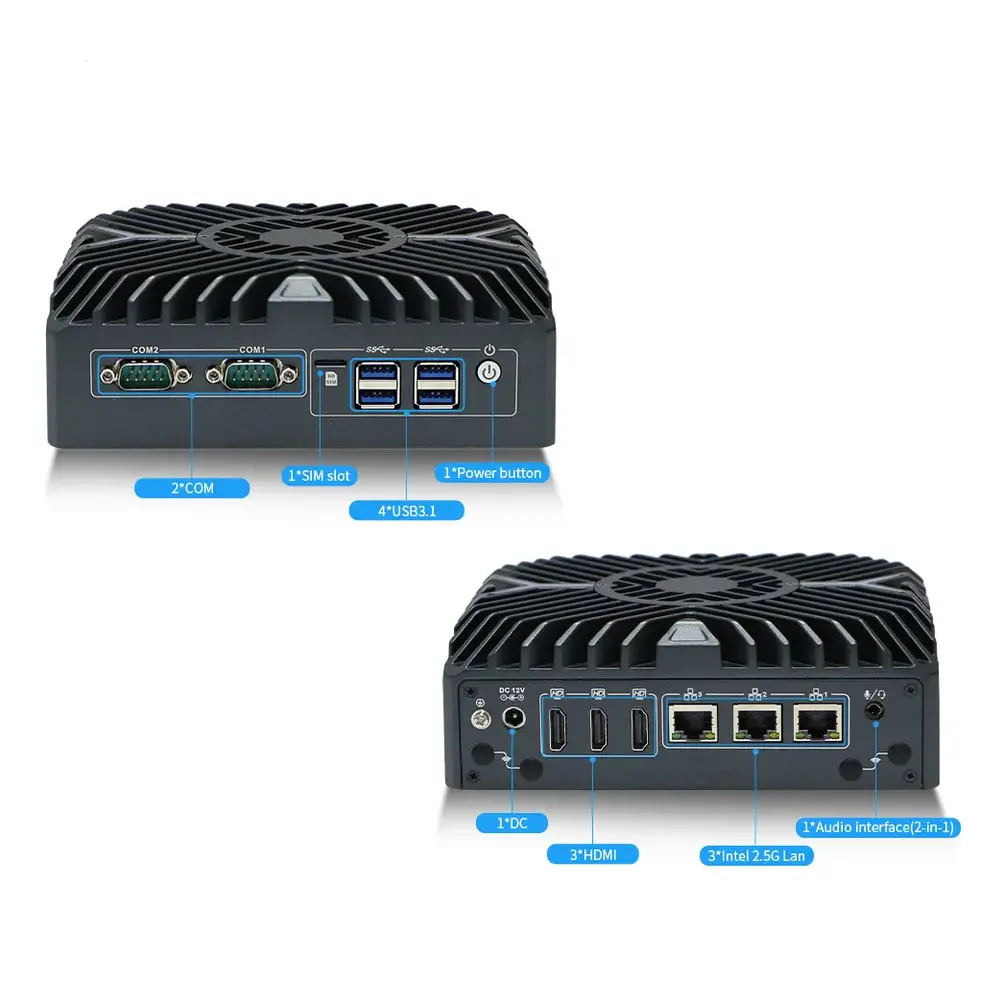

I/O Interfaces

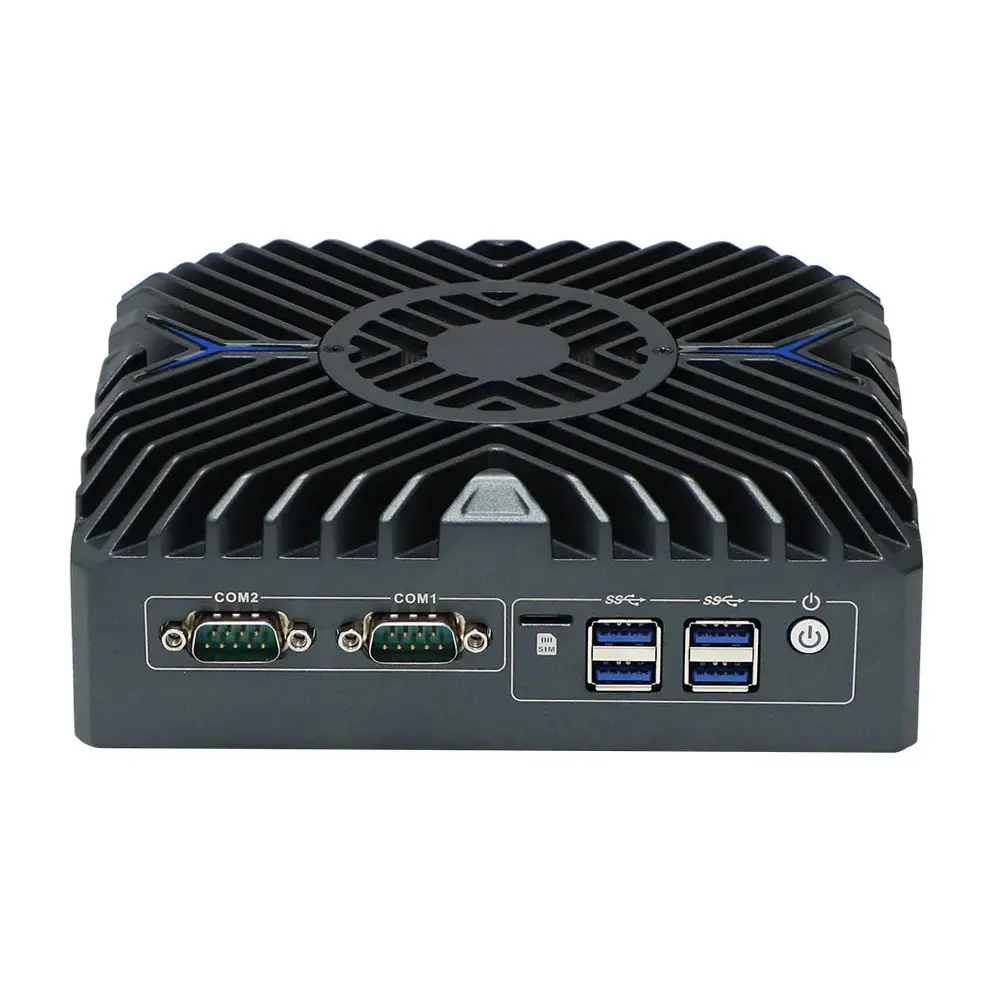

Front Panel	2 x COM support RS232/RS485
	1 x SIM slot
	1 x Power button
	4 x USB3.1
Rear Panel	1 x DC port
	3 x HDMI
	4 x Antenna holes
	3 x Intel 2.5G Lan
	1 x Audio interface(2-in-1)

Software Support

Bios	AMI EFI BIOS
System Support	Windows 10/11, Linux

General

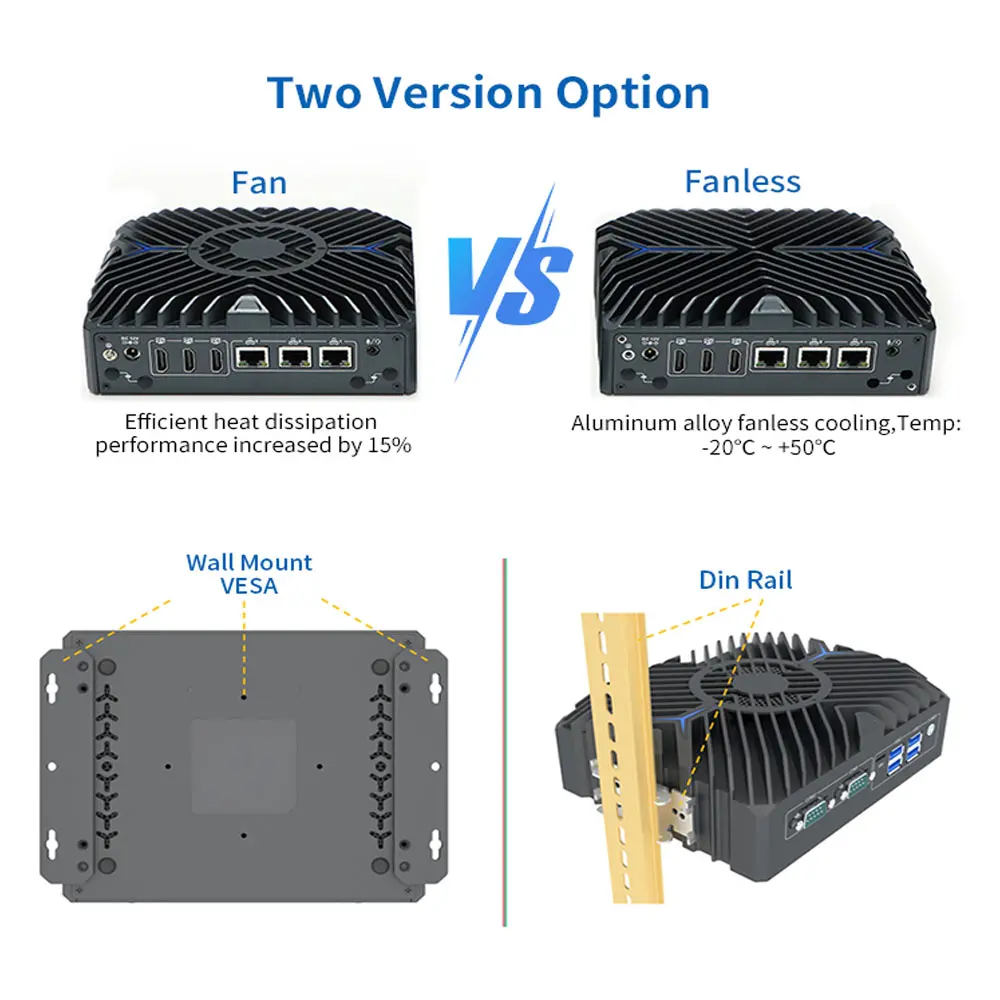

Cooling Mode	Fanless/Fan Cooling
Power Supply	DC-IN 12V

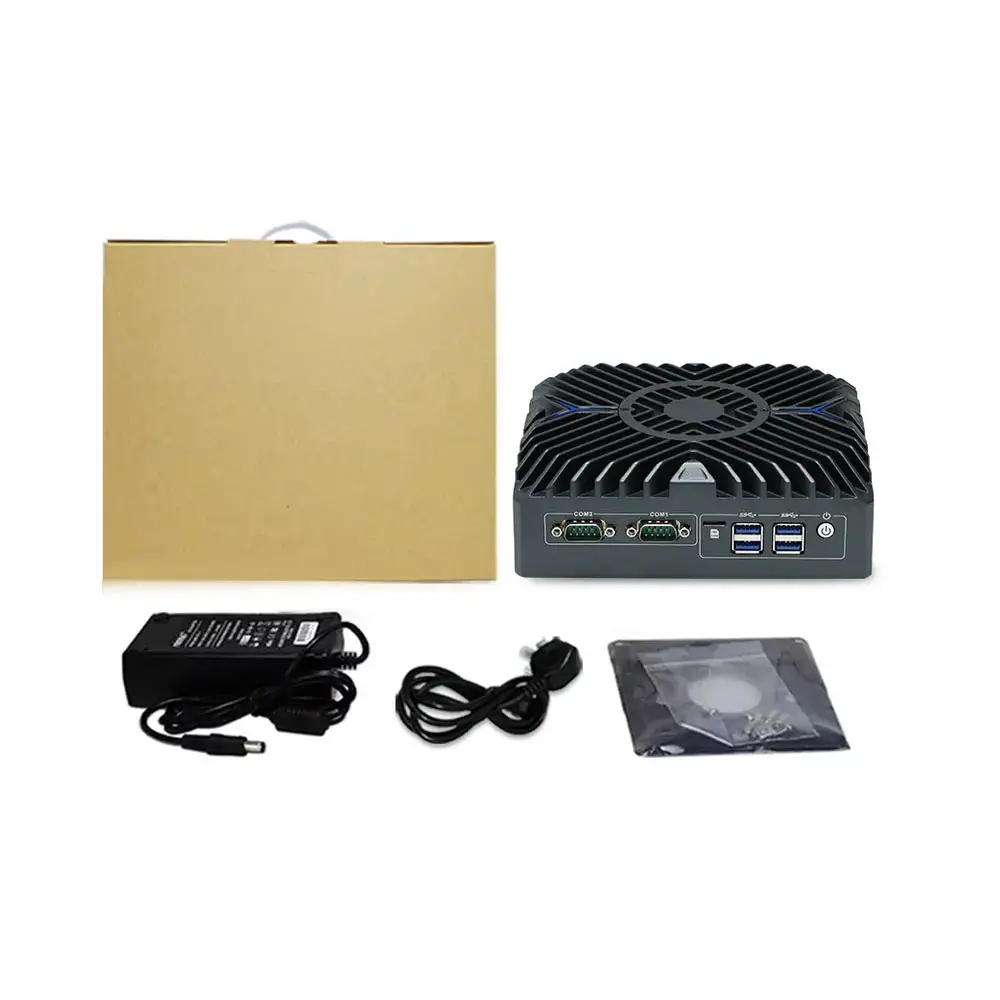

Packing List	1 x Mini PC, 1 x Power Adapter, 1 x Power Cable

Environment

Work Temperature	0℃-+40℃ (business HDD), -20℃ – +50℃(industrial SSD), Surface air flow
Relative Humidity	5 % ～ 95% non-condensing
Certification	CE FCC ROHS
Application	Industrial Control, Industrial Automation, Robot, IoT gateway, Edge computing, Machine Vision, AGV/ARM, etc

Model	Processor	Graphic	Frequency	Display	Memory	Storage	COM	LAN	USB	Power
N7	I3 1215U	Intel® UHD Graphics	3.3~4.4GHz	3 x HDMI	1 x DDR5, Max 32G	1 x M.2 2280 slot, 1 x 2.5inch SSD/HDD	2	3	4	DC 12V
N7	I5 1235U	Intel® Iris® Xe Graphics eligible	3.3~4.4GHz	3 x HDMI	1 x DDR5, Max 32G	1 x M.2 2280 slot, 1 x 2.5inch SSD/HDD	2	3	4	DC 12V
N7	I7 1255U	Intel® Iris® Xe Graphics eligible	3.5~4.7GHz	3 x HDMI	1 x DDR5, Max 32G	1 x M.2 2280 slot, 1 x 2.5inch SSD/HDD	2	3	4	DC 12V
