Mini PC Soft Router Firewall 4 LAN

Mini PC Soft Router Firewall 4 LAN

Model: Partaker S02

  • Intel Celeron J4125 4 Cores 4 Threads 2.00Ghz
  • 1 x DDR4 SO-DIMM SLOT, Max 8GB
  • 1 x mSATA SSD
  • 4 x Intel i226-V 2.5G RJ45 LANs
  • 4*LAN+2*USB3.0+1*COM+1*DC-IN+1*VGA+Indicator light
  • Support pfSense, Linux, Ubuntu, RouterOS, Debian, OPNsense, Windows etc.

Share to:

Overview



Partaker S02 Firewall Appliance are designed for office, home an trainning applications. This firewall pc support 7 x 24 hours operation with Intel celeron J4125, high quality pellets and strong compatibility for DDR4 RAM. Use silent fan to dissipate heat without leaving sound, more stable.





Mechanical

Material Iron
Colour Silver (any color can be customized)
Size 195 x190 x 45(mm)
Weight 2Kgs
Insallation Method Desktop type



Motherboard

CPU Intel Celeron J4125 Processor, 4 Cores 4 Threads, 4M Cache, up to 2.70 GHz
Network Card 4 x Intel I225/I226 2.5G Nework Cards
Graphic Intel UHD Graphics 600
Memory 1 x DDR4 SO-DIMM Slot, Max 8GB
Storage 1 x mSATA SSD, not support 2.5 inch, chassis has no place
Display 1 x VGA
Expand Support 1 MINI PCIE channel (can be WIFI/Bluetooth/4G)



I/O Interfaces

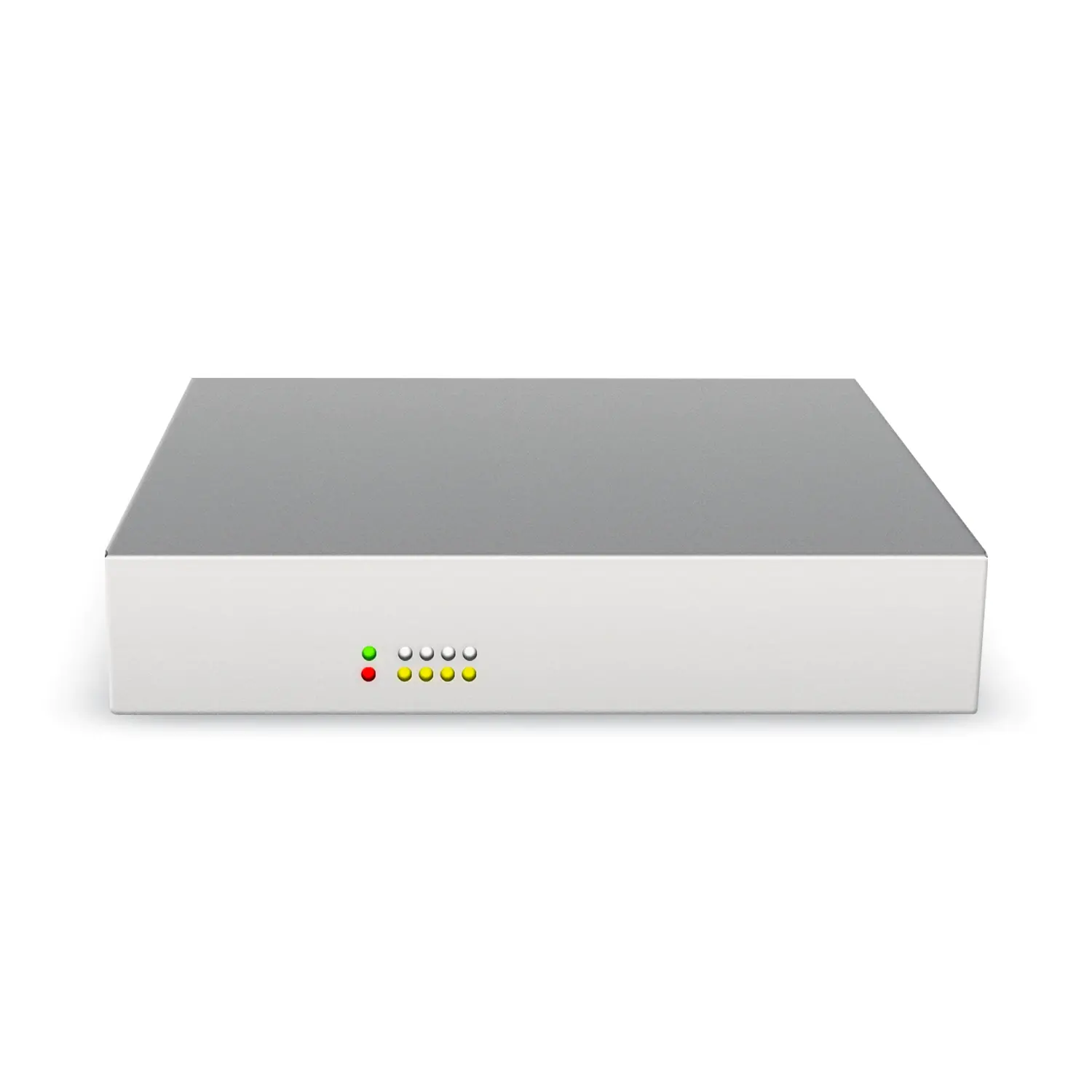

Front Panel 1 x Indicator light

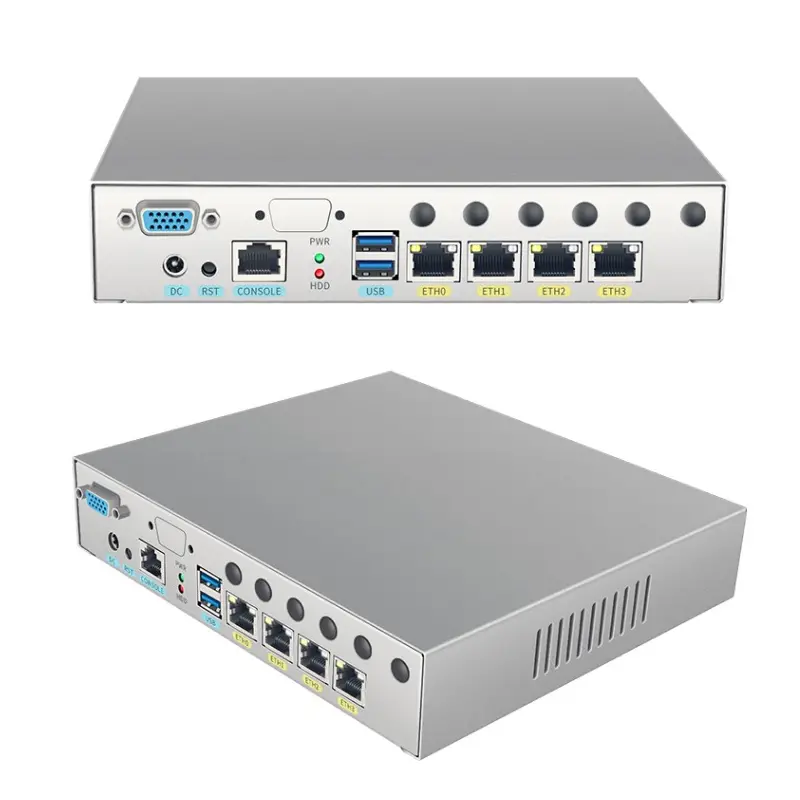

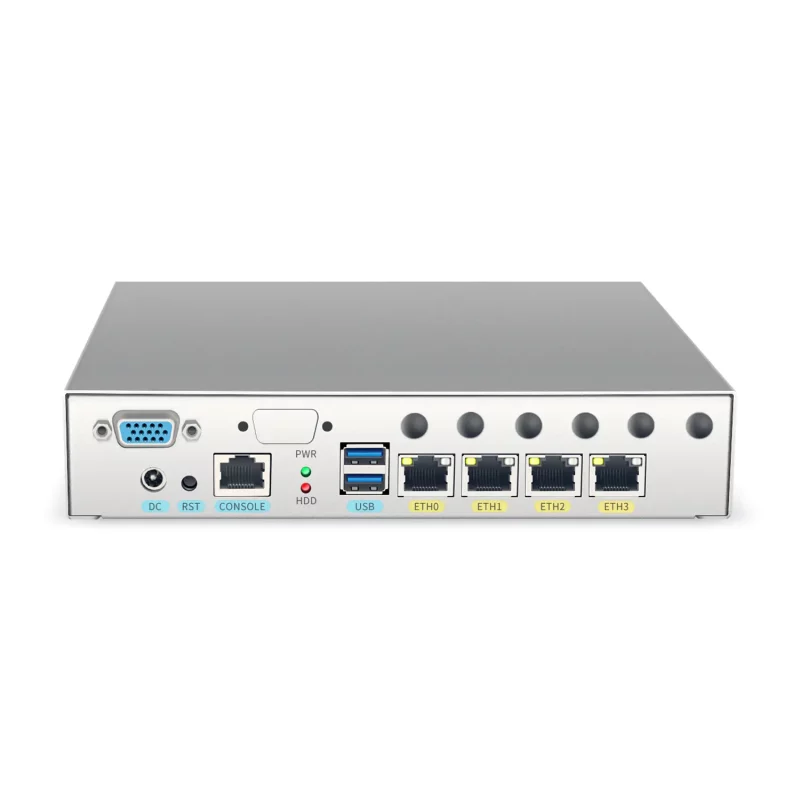

Rear Panel 1 x VGA
1 x DC IN
1 x Reset
1 x Console
1 x HDD/PWR LED light
2 x USB3.0
4 x LAN



Software Support

System Support Windows,10,Server2012/EXSI/Ikuai/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense/Linux



General

Cooling Mode With Fan
Power Supply External power 12V 5A DC5.5*2.5(optional)
Packing List S02 mini pc, power adapter, power cord, warranty card



Model Processor Graphics Frequency Display Memory Storage LAN USB Power
S02 J4125 Intel® UHD Graphics 600 2.0~2.70GHz 1 x VGA 1 x SO-DIMM DDR3L 1 x mSATA 4 2 12V/5A
