Fanless Mini PC Intel Celeron J4125

Fanless Mini PC Intel Celeron J4125

Model: Partaker C7

  • J4125 Mini PC: Compact & powerful for industrial use.
  • Intel Celeron J4125 processor for seamless performance.
  • Supports DDR4 RAM for efficient multitasking.
  • Integrated HD Graphics for smooth visuals.
  • Multiple display ports for versatile connections.
  • Durable aluminum construction.
  • Expandable with M.2 & MINI PCIE slots.
  • Rich I/O ports, including USB 3.0 & Gigabit LAN.
  • TPM security module for data protection.
  • Ideal for medical, logistics, & more.

Share to:

Overview



This mini pc powered by the Intel Celeron J4125 processor, offers robust performance in a compact form factor. With its integrated Intel HD Graphics 600, DDR4 memory support, and multiple display ports, it’s ideal for industrial automation, medical, and educational applications. Its aluminum build ensures durability, and its range of expansion slots and connectivity options make it highly versatile.



Mechanical

Material High-quality all aluminum, surface anodic oxidation
Colour Black(color can be customized)
Size 144 x 126.5 x 42 mm (W x D x H)
Weight 1.5Kgs
Insallation Method Desktop type/vesa mounting



Motherboard

CPU Adopt Intel Celeron J4125 quad core 2.0GHz
CPU Architecture Gemini Lake Refresh
Network Card 2 x 10/100/1000M RTL8111H Ethernet Lan
Display Port 1*HD Port,2*DP Port (Support synchronous and asynchronous three display,Max Resolution support 4096×2160 @ 60Hz)
Audio Support audio and mic input
Memory 1 x DDR4 3200MHz SODIMM, Max 8 GB
Storage 1 x M.2 2280 Slot, Onboard 1 x 2.5”HDD
Expand 1 x M.2 2280 M-key slot( support SATA protocol)

1 x M.2 2242 B-key Slot(Support4G),Embedded SIM slot

1 x M.2 2230 E-key Slot(Support WIFI,BT)

Expansion function: TPM Pin (support TPM 1.2 / 2.0 security module),1*COM



I/O Interfaces

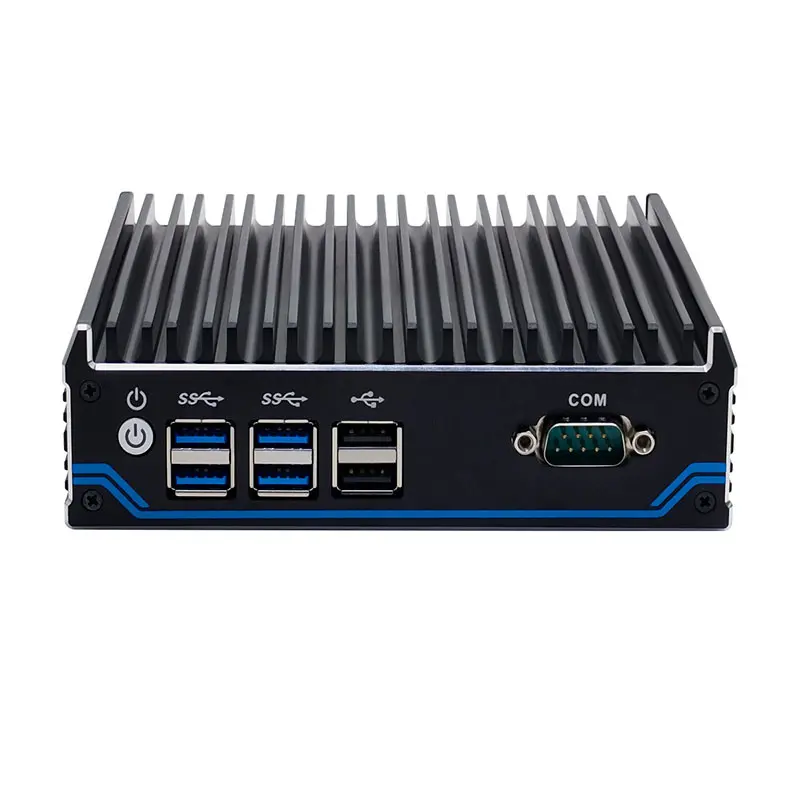

Front Panel 1 x Power button
4 x USB3.0
2 x USB2.0
1 x COM
Rear Panel 2 x WiFi Antennas Holes
1 x DC-IN 12V
2 x DP
2 x LAN
1 x Audio(Mic and Speaker)



Software Support

Bios AMI UEFI BIOS
System Support Windows, Linux, pfSense etc



General

Cooling Mode Fanless
Power Supply DC 12V-IN power supply and AC power adapter

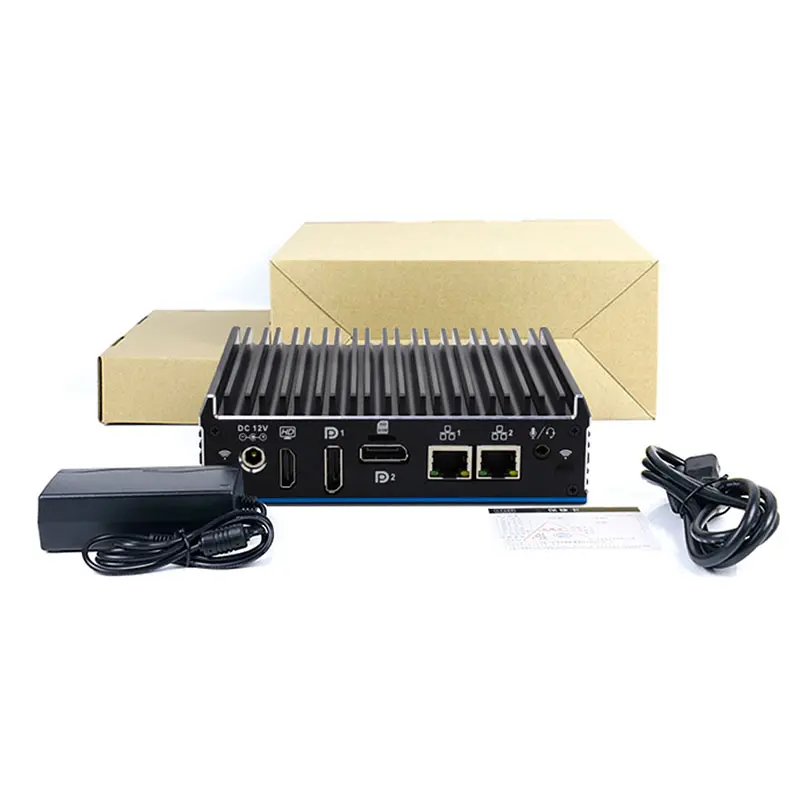

Packing List C7 mini pc, power supply, power cord, vesa, warranty card



Environment

Working Temperature 0℃ ~ +50℃(Commercial HDD),-20℃ ~ +60℃(Industrial SSD),Surface air flow
Working Humidity 0% – 95% relative humidity, Non-condensing
Other Function Auto power on when there is electricity,Timing boot,Wake on LAN,PXE boot
Certification CE FCC ROHS



Model Processor Graphics Frequency Display Memory Storage LAN USB Power
C7 J4125 Intel® UHD Graphics 600 2.0~2.7 GHz 1 x HDMI/2 x DP 1 x SO-DIMM DDR4 1 x M.2 2280/1 x 2.5 inch SSD HDD 2 6 12V/4A
