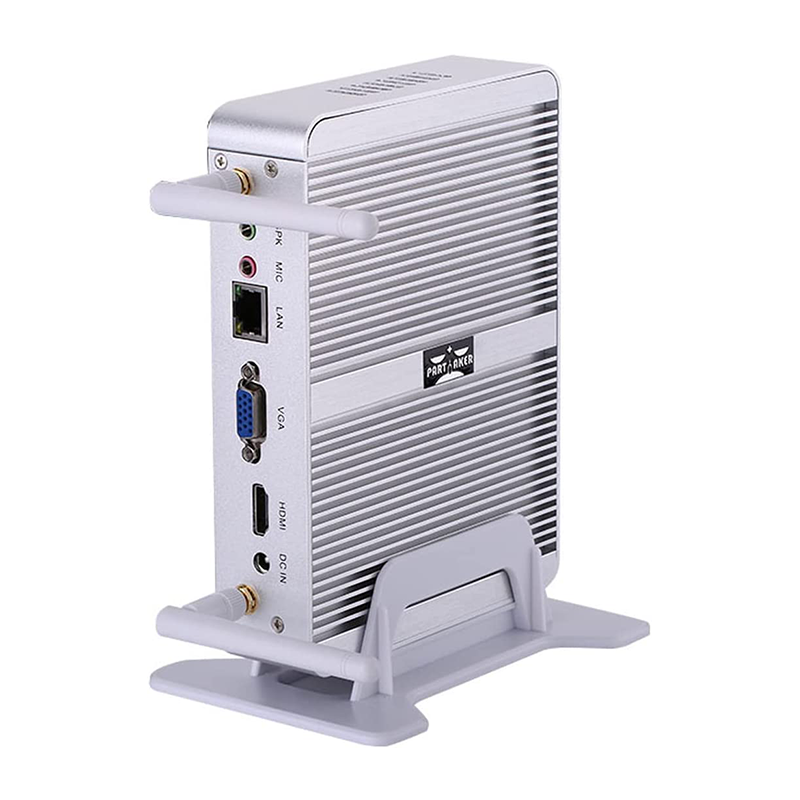

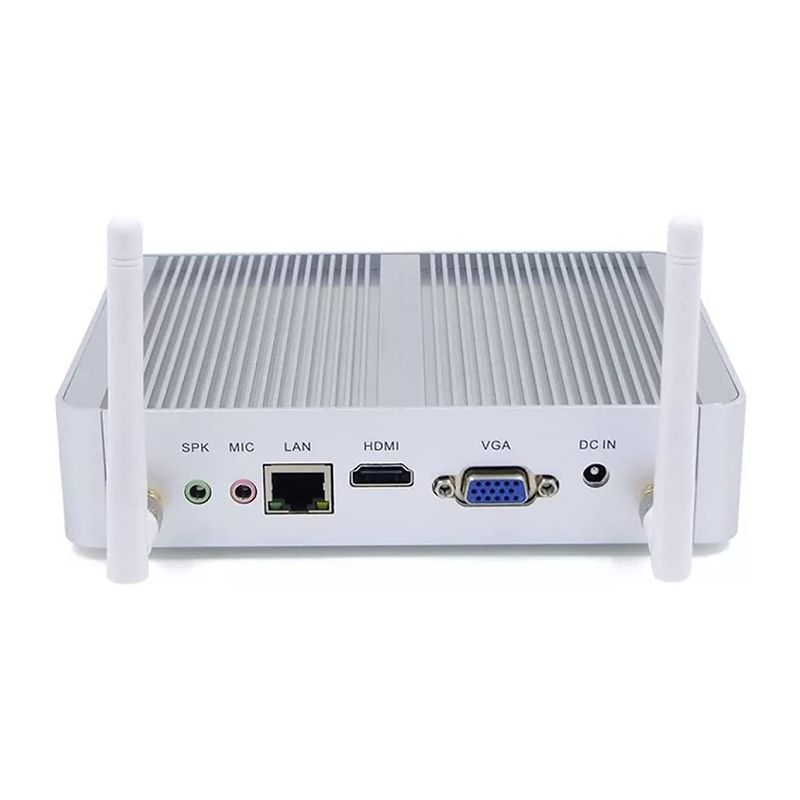

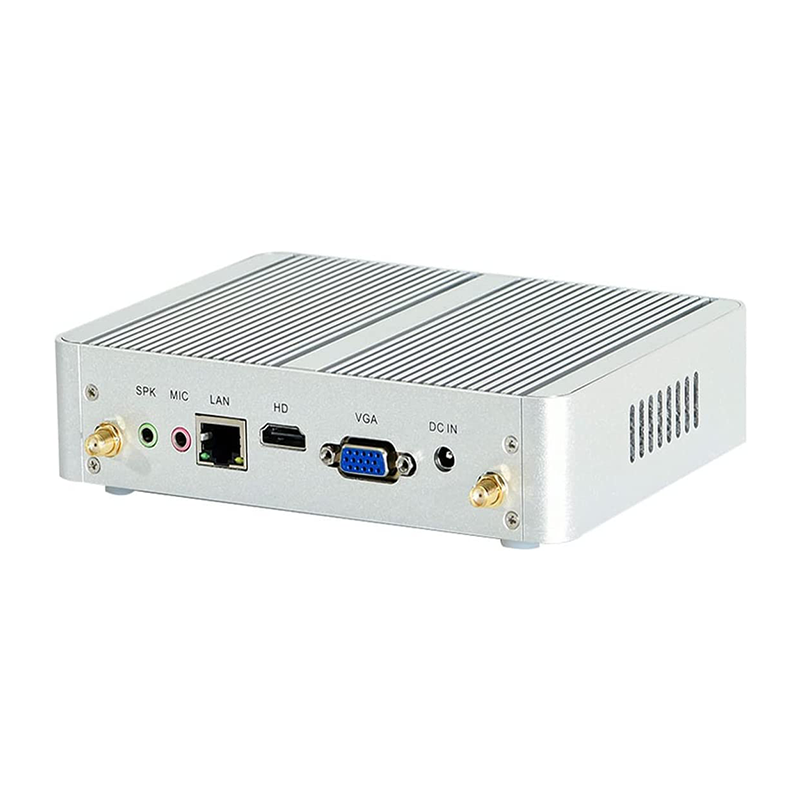

Fanless Mini PC 4th Gen Intel Core I5 i3

Fanless Mini PC 4th Gen Intel Core I5 i3

Model: Partaker B4

  • 4th Generation Intel® Core™ i5/i3 Processors
  • 1 x SO-DIMM DDR3L 1333/1600, max. 8GB RAM
  • Support 1 x mSata SSD+1 x 2.5 inch SATA SSD
  • Aluminum chassis, 170 x 120 x 36mm
  • I/O Ports: VGA, HDMI, LAN, 4 x USB 3.0, 2 x USB2.0, MIC, SPK
  • Support Windows 7/10/11, Linux Ubuntu etc
  • Fanless passive cooling, noiseless experience
  • CE FCC ROHS, 3 Years Warranty

Share to:

Overview



B4 is a fanless, zero-noise, Intel core i3 i5 mini computer, the size is only 1/20 of the traditional desktop computer, if you are a student party, entrepreneur, purchaser, designer, need a cost-effective, stylish Small and compact, with simple wiring and powerful performance, our B4 is your best choice. It can meet the daily needs of most people using computers, office, customer service, classroom, training, home theater, cash register, etc.



Mechanical

Material Aluminum alloy
Colour Silver
Size 170 x 120 x 36mm
Weight 1.5Kgs
Insallation Method Desktop type/vesa mounting
With holding vertical stand, vesa mount as the optional



Motherboard

CPU Intel® Core™ i3-4020Y Processor (3M Cache, 1.50 GHz)
Intel® Core™ i5-4200Y Processor (3M Cache, up to 1.90 GHz)
Chipset SOC
Network Card 1 x Intel RTL 8168/8111/8112 gigabit lan
WiFi and Bluetooth With dual antennas, 802.11ac 2.4+5Ghz, bt 4.0/4.2
Memory 1 x SO-DIMM DDR3L 1333/1600, up to 8GB RAM
Storage 1 x mSata SSD, 1 x 2.5 inch SSD/HDD
Expand 1 x Mini PCIE (half size) WiFi slot



I/O Interfaces

Front Panel 1 x Power button
4 x USB3.0
2 x USB2.0
Rear Panel 1 x DC_in
1 x HDMI
1 x HDMI
1 x Lan
1 x Audio
2 x WiFi antennas



Software Support

Bios AMI bios
System Support Windows 10, linux ubuntu etc



General

Cooling Mode Fanless
Power Supply DC100-240V AC/50-60Hz, DC 12V3A/5A
Packing List B4 mini pc, power supply, power cord, vertical stand, wifi antennas, warranty card



Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification CE FCC ROHS



Model Processor Graphics Frequency Display Memory Storage LAN USB Power
B4 I3 4020Y Intel® HD Graphics 4200 1.50 GHz VGA/HDMI 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 1 6 12V/3A
B4 I5 4200Y Intel® HD Graphics 4200 1.40~1.9 GHz VGA/HDMI 1 x SO-DIMM DDR3L 1 x 2.5 inch/1 x M-SATA 1 6 12V/5A
