12th Gen 2.5G Soft Router Celeron J6412

12th Gen 2.5G Soft Router Celeron J6412

Model: Partaker H6

  • Elkhart Lake Intel Celeron J6412 4 cores 4 threads 2.0GHz up to 2.6GHz TDP 10W Intel UHD Graphics
  • 4 x Intel i226-V 2.5G RJ45 LANs, 2xDB9 RS232 COM, 2xUSB3.0, 4xUSB2.0
  • 2 x DDR4 SODIMM ram slots, support 2400/2666/3200MHz, Max 32GB
  • 1 x M.2 NVMe/PCIe3.0 SSD+1×2.5 Inch SATA3.0 SSD/HDD
  • 1 x SIM slot, 1xMPCIE wireless slot, support 4G/3G/WiFi(3 choose 1) connection
  • 1 x HDMI, 1xDP, 2 x 4K UHD video display, Fanless system

Share to:

Overview



The Partaker H6 is a powerful software router that features 4 Intel 2.5G LAN ports and is equipped with the efficient Intel Celeron J6412 processor. It supports dual-channel DDR4 memory with a maximum capacity of 32GB and provides M.2 and SATA3.0 hard drive interfaces, allowing users to choose the storage solution that suits their needs.



This software router also offers impressive display capabilities, supporting 4K resolution and providing HDMI and DP ports for synchronous or asynchronous multi-display setups, delivering a rich visual experience.



Designed with a fanless cooling system, the Partaker H6 ensures silent operation and efficient heat dissipation, making it an ideal choice. Moreover, the device is compatible with various operating systems, including Windows, Ubuntu, pfSense, and OPNsense, providing greater flexibility and diverse options.



In summary, the Partaker H6 software router offers outstanding performance and a feature-rich solution, catering to the needs of different users in home networks, office environments, or enterprise deployments.





Mechanical

Material Aluminum alloy
Colour Black
Size 178x 122 x 55mm
Weight 2.5Kgs
Insallation Method Desktop type/Vesa



Motherboard

CPU 10nm Elkhart Lake Intel Celeron J6412 4 cores 4 threads 2.0GHz up to 2.6GHz TDP 10W Intel UHD Graphics
Display Ports 1 x HDMI, 1 x DP,  support synchronous or asynchronous display
Color Black
Graphic Intel UHD Graphics
Network Card 4 x Intel i226 Gigabit LAN
Expand 1 x SIM slot, 1xMPCIE wireless slot, support WiFi/3G/4G(3 choose 1) connection
Memory 2 x DDR4 SODIMM ram slots, support 3200MHz(compatible with 2400/2666MHz)
Storage 1 x M.2 NVMe/PCIe3.0 SSD, 1 x 2.5”SATA3.0 SSD/HDD
Other Function Support TPM2.0, AES-NI, ESXi, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc

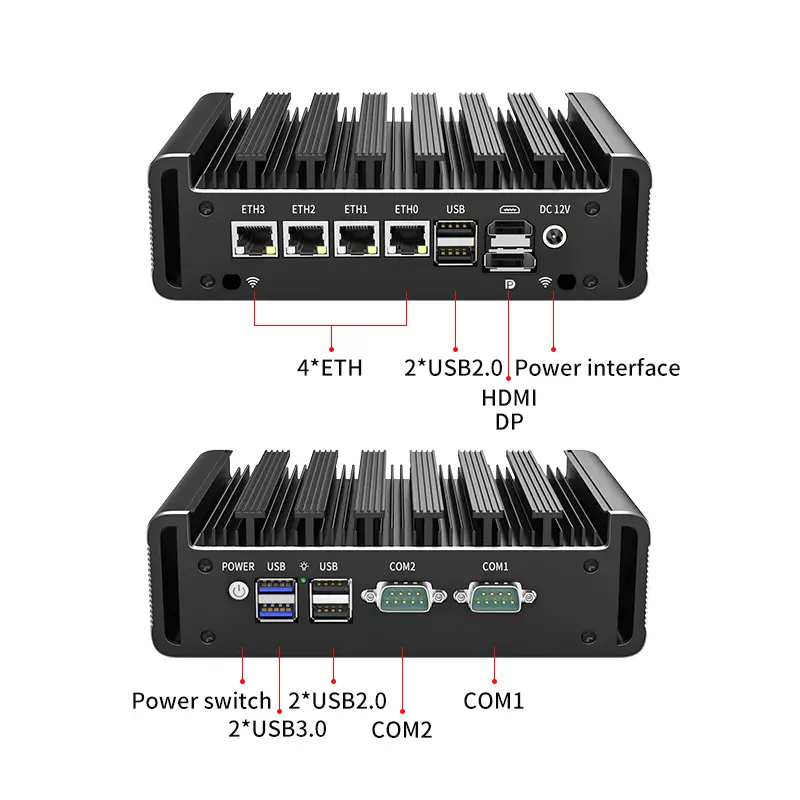

I/O Interfaces

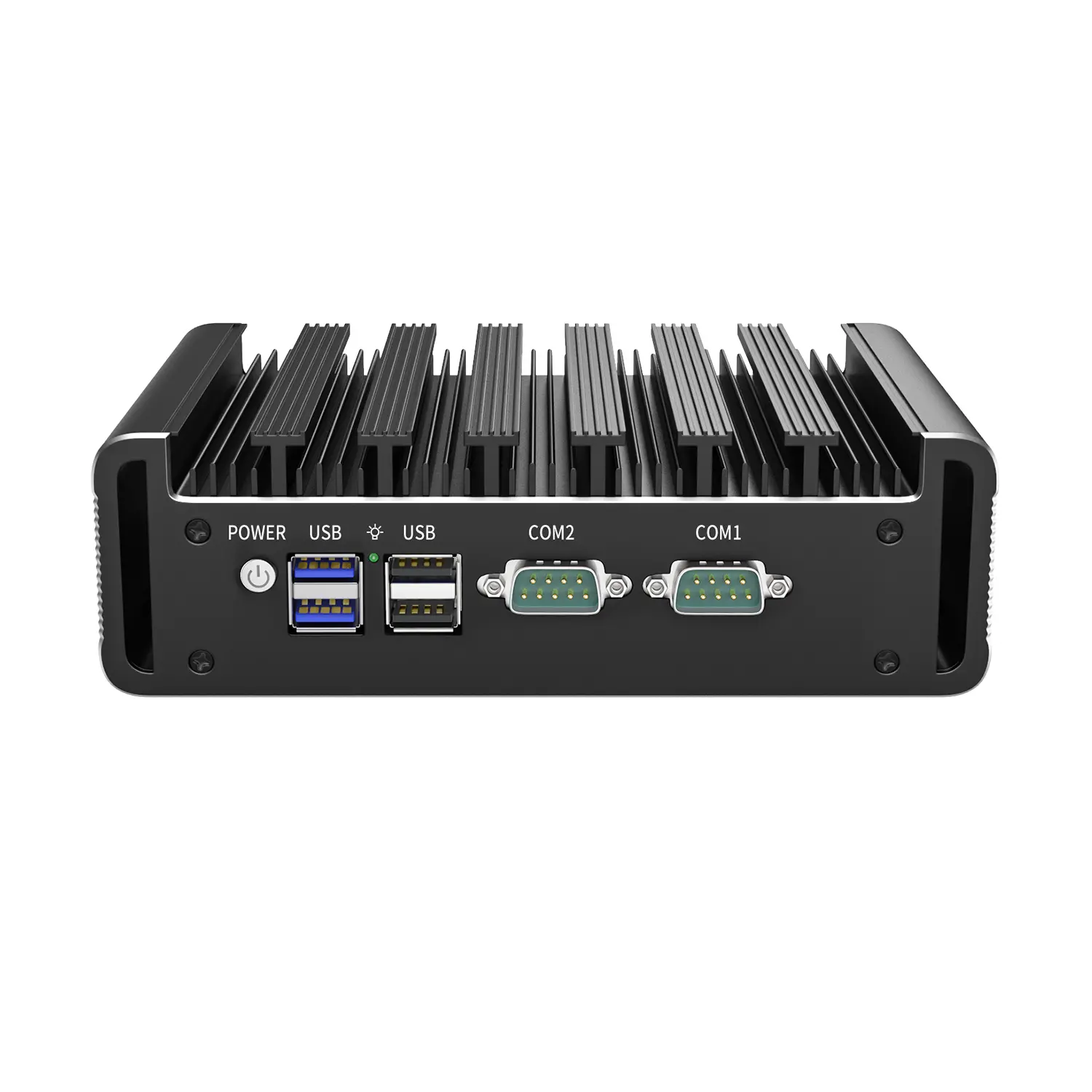

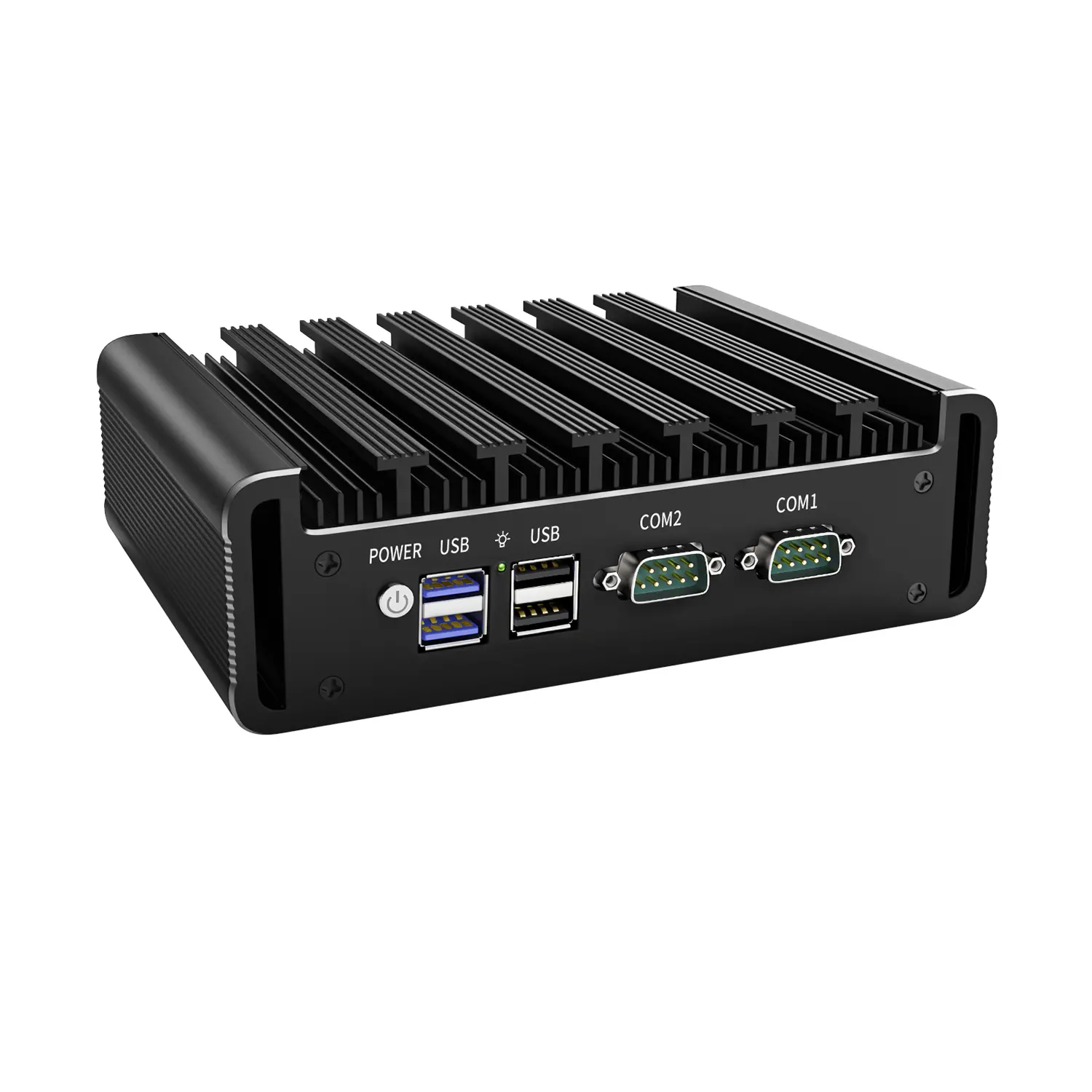

Front Panel 2 x USB3.0
2 x USB2.0
2 x COM
1 x Power Switch
2 x indicator light

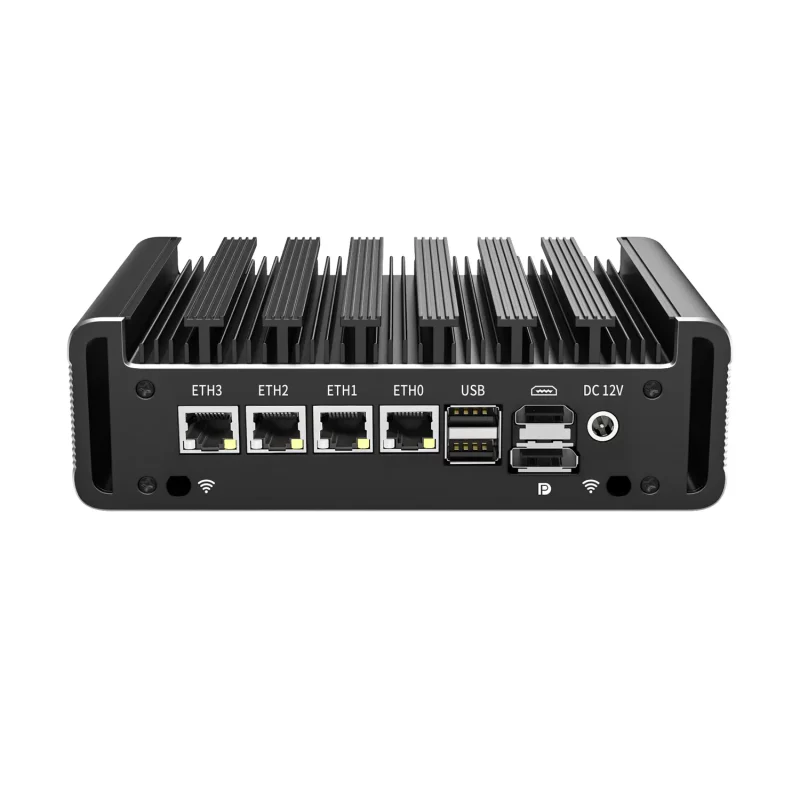

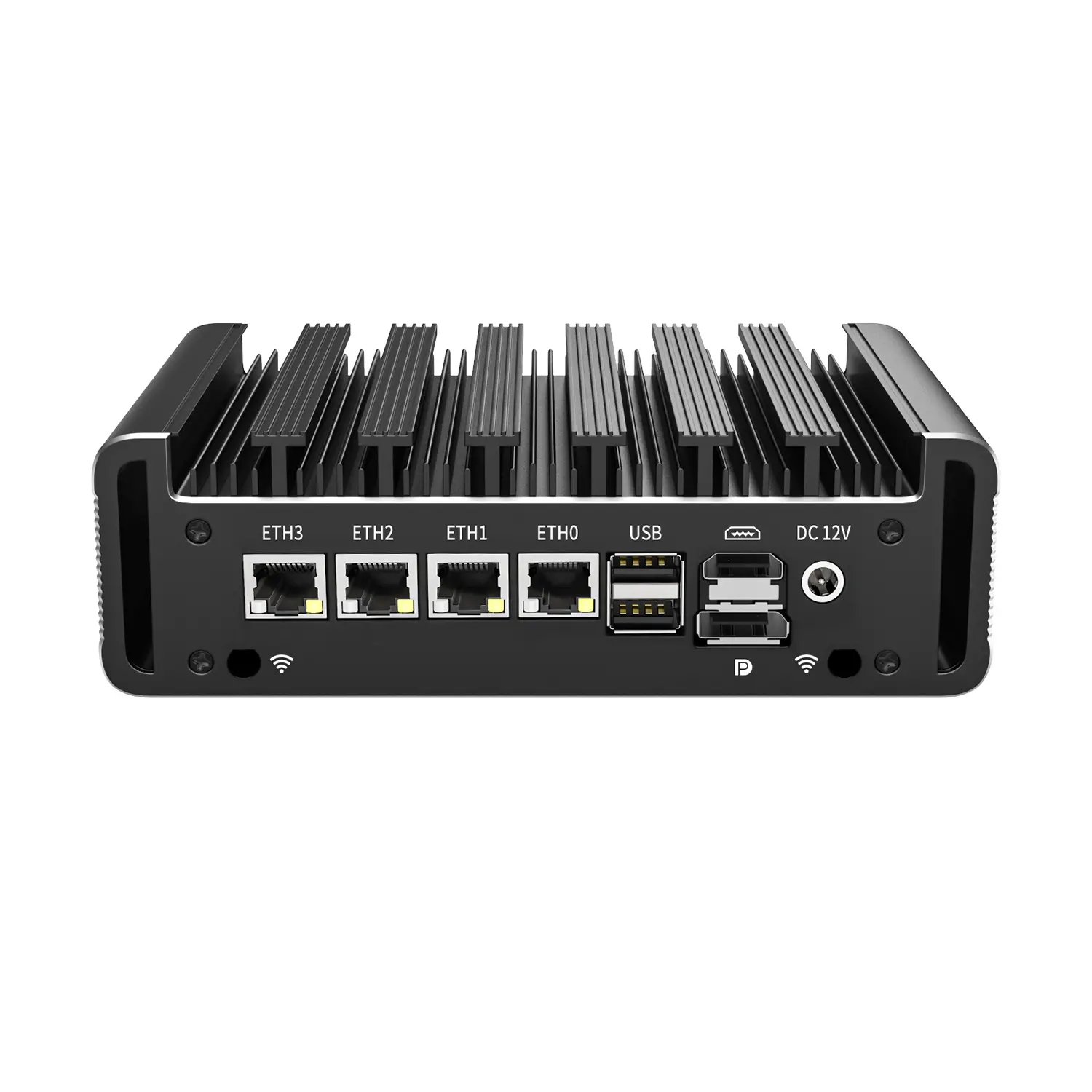

Rear Panel 4 x LAN
2 x USB2.0
1 x HDMI
1 x DP
2 x WiFi Holes
1 x DC-IN



Software Support

Bios AMI EFI BIOS
System Support Windows, Linux Ubuntu, pfSense, OPNsense etc



General

Cooling Mode Fanless
Power Supply DC12V
Packing List H6 mini pc, power supply, power cord, warranty card



Environment

Operating Temperature 0°C~70°C Centigrade (32°F~140°F)
Storage Temperature -20°C~80°C Centigrade (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Certification CE FCC ROHS



Model Processor Graphics Frequency Display Memory Storage LAN USB COM Power
H6 J6412 Intel UHD Graphics 2.0~2.60 GHz 1 x DP/1 x HDMI 2 x SO-DIMM DDR4 1 x M.2 NVMe SSD/1 x 2.5 inch SATA 4 6 2 12V4A
